Network Automation & APIs

Overview

Network automation replaces repetitive per-device CLI with programmatic, repeatable changes — scripts, APIs, and templates stored in version control. Controllers centralize policy while devices still forward traffic locally. At CCNA depth you need vocabulary: southbound vs northbound APIs, REST verbs, and how to recognize structured data in JSON, YAML, and XML.

Try hands-on examples in the Automation Sandbox.

Traditional vs controller-based networking

Automation use cases: initial provisioning, software version control, compliance checks, statistics collection, reporting, and troubleshooting at scale.

Planes of networking

In SDN, control plane intelligence can move to a centralized controller. Devices focus on forwarding; the controller programs behavior via southbound APIs.

Northbound vs southbound APIs

Memory trick: South points down the topology diagram toward switches and routers. North points up toward automation apps and business logic.

Data serialization formats

Automation exchanges structured data between systems. Common plain-text encodings:

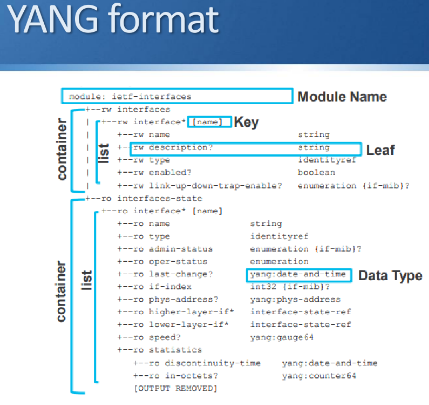

YANG is a data modeling language (IETF) describing device configuration and operational state — the schema behind NETCONF/RESTCONF payloads.

REST APIs and HTTP verbs

REST (Representational State Transfer) is an architectural style for web services. RESTful APIs typically run over HTTP and map cleanly to CRUD operations:

REST characteristics (know for exam):

1. Client/server — front end and back end independent
2. Stateless — server stores no client session between requests
3. Cacheable — responses may be cached for performance

Each HTTP request includes a URI (resource path) and verb. Example DNA Center workflow: POST a new security policy, GET to verify, PUT to update a setting, DELETE to remove it.

GET    https://dna-center/api/v1/network-device
POST   https://dna-center/api/v1/template
PUT    https://dna-center/api/v1/template/{id}
DELETE https://dna-center/api/v1/template/{id}
! Headers often include:
! Authorization: Bearer <token>
! Content-Type: application/json

JSON structure

JSON (JavaScript Object Notation) is the dominant format for REST payloads. Rules that trip up beginners:

• Keys and string values use double quotes (not single)
• Key/value pairs separated by colons
• Pairs separated by commas — no trailing comma after the last item
• Booleans are lowercase: true / false
• null represents empty/absent value

Data types:

JSON device inventory example:

{
  "devices": [
    {
      "hostname": "SW-FLOOR1",
      "mgmt_ip": "10.0.0.11",
      "vlans": [10, 20, 30],
      "enabled": true
    },
    {
      "hostname": "R-BRANCH",
      "mgmt_ip": "10.0.0.1",
      "ospf_enabled": true
    }
  ]
}

Arrays preserve order; objects are unordered collections of key/value pairs. Automation tools parse JSON to loop over devices and apply templates.

YAML basics

YAML (YAML Ain't Markup Language) is a human-readable format for configuration files. Ansible playbooks and inventory files are written in YAML — you do not need to author complex playbooks for CCNA, but you must recognize valid structure when you see it on the exam.

Core rules:

• Indentation defines structure — use spaces (typically 2); tabs are invalid in strict YAML
• Key: value pairs on one line (hostname: SW1)
• Lists use a leading dash and space (- 10.0.0.1)
• Strings usually need no quotes unless they contain special characters
• true / false and numbers work like JSON booleans and integers

Ansible inventory example (recognize the shape):

all:
  children:
    switches:
      hosts:
        SW-FLOOR1:
          ansible_host: 10.0.0.11
        SW-FLOOR2:
          ansible_host: 10.0.0.12
    routers:
      hosts:
        R-BRANCH:
          ansible_host: 10.0.0.1

Minimal playbook fragment:

---
- name: Configure NTP on routers
  hosts: routers
  tasks:
    - name: Set NTP server
      ios_config:
        lines:
          - ntp server 10.1.1.1

Same data, three formats (recognition drill):

XML basics

XML (eXtensible Markup Language) is a tag-based, hierarchical format. It is more verbose than JSON or YAML but maps cleanly to schemas — important for NETCONF, where requests and replies are XML RPCs described by DTDs or schemas.

Core rules (recognize, don't memorize every attribute):

• Every element has opening and closing tags: <hostname>SW1</hostname>
• Elements nest to show hierarchy (like indented YAML)
• Attributes sit inside the opening tag: <interface name="GigabitEthernet0/1">
• One root element wraps the whole document
• Case-sensitive tag names

NETCONF-style RPC (simplified — recognize the envelope):

<rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
  <get-config>
    <source>
      <running/>
    </source>
  </get-config>
</rpc>

jdepew88 REST APIs notes: NETCONF clients send an RPC in XML over a secure session; the server replies in XML. Both sides agree on syntax limits via XML schemas — that is why XML persists in network device APIs even when northbound REST prefers JSON.

NETCONF and RESTCONF (awareness)

NETCONF layers: secure transport → messages → operations → content (YANG models).

SNMP remains relevant for monitoring and traps, but NETCONF/RESTCONF improve structured configuration compared to SNMP SET operations.

Configuration management tools

Infrastructure as Code (IaC): Store playbooks, templates, and inventory in Git — review, rollback, and audit like application code.

Automation workflow (step-by-step)

Goal: ensure NTP is configured on 20 routers.

1. Inventory — YAML/JSON list of device IPs and credentials (vault-encrypted)
2. Template — Jinja template: ntp server {{ ntp_ip }}
3. Tool — Ansible playbook loops inventory and pushes config
4. Validate — show ntp status on sample devices
5. Version control — commit playbook to Git

You won't build a full CI/CD pipeline on the CCNA exam — but you will recognize the pattern and vocabulary.

Practice on this site

The Automation Sandbox covers:

• Northbound vs southbound direction
• REST verb to CRUD mapping
• JSON, YAML, and XML syntax recognition
• Ansible and Terraform awareness quizzes

Exam checklist

• Define southbound vs northbound and give one example each
• Map HTTP GET/POST/PUT/DELETE to CRUD
• Identify valid vs invalid JSON (quotes, trailing commas, booleans)
• Recognize YAML — indentation, key: value, list items with -
• Recognize XML — nested tags, opening/closing pairs, NETCONF RPC envelope
• Match format to tool: JSON (REST), YAML (Ansible), XML (NETCONF)
• Explain why controllers help at scale without removing distributed forwarding
